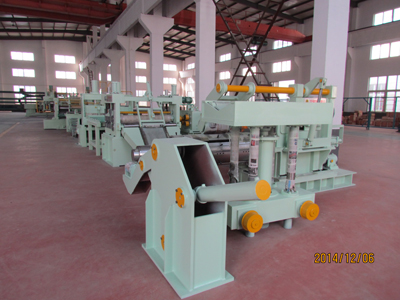

Thin sheet slitting line is suitable for coil strip thickness (0.2~1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; while strip width is changeable: 600mm. 1000mm, 1250mm, 1600mm, 1800mm and so on.

Detailed technical data for our think Slitting lines:

1.MA-(0.2～1)×600mm Thin Sheet Slitting Line domestic customer
Material of coils: carbon steel, color steel, galvanized steel and etc
Strip thickness: (0.2~1) mm
Strip width: 600mm
Inner diameter of coils: Φ508mm
Max. Outer diameter of coils: Φ1500mm
Max. Coil weight: 8000kg

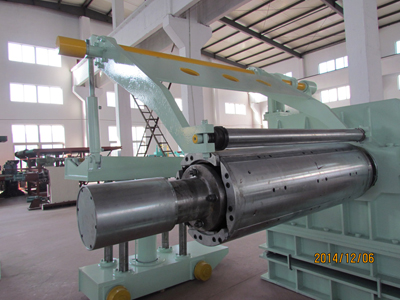

Recoiling block: Ф508 x 700
Recoiler motor: AC 37KW

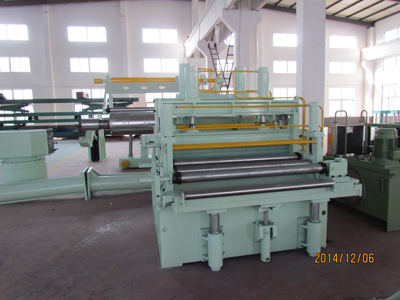

Slitter shaft: Ф180 x 700
Slitter motor: AC 22KW
Material of disc cutter: ID180mm x OD300mm x 8/10mm, 6CrW2Si, HRC58-60.
Slitting speed: (0~50) m/min, adjustable

2.MA-(0.3-2)×1300mm Metal Coil Slitter in Venezeula
Material of coils: carbon steel, stainless steel, galvanized plate, colored steel plate
Strip thickness: (0.3-2) mm
Max. Strip width: 1300mm
Inner diameter of coils: ≥Φ508mm
Outer diameter of coils: Φ1800mm
Max. Coil weight: 15000Kg
Slitter motor: 55KW DC motor
Slitter shaft: Ф205 x 1400mm
Disc knives on slitter shaft: ID205mm x OD310mm x 10mm, 6CrW2Si(H13, SKD-11).
Separating disc: ID75 x OD180mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.

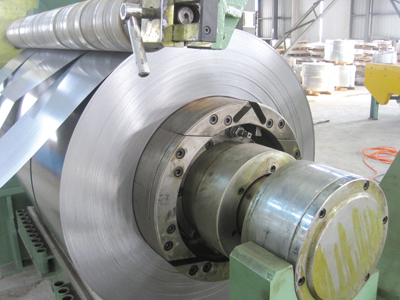

Recoiler block: Ф508 x 1400mm
Recoiler motor: 75KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 80m/min, adjustable.

3.MA-(0.3～3)×1600mm Coil Slitting Machine in Serbia
Material of coils: HRC, CRC, GI, PPGI, Q195, Q235, Q345...
Strip thickness: (0.3-3) mm
Max. Strip width: 1600mm
coil ID: ≥Φ508mm
Coil OD: Φ1800mm
Max. Coil weight: 20000Kgs
Slitter motor: 75KW DC motor
Slitter shaft: Ф220 x 1650mm
Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
Separating disc: ID85 x OD210mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
Recoiler block: Ф508 x 1700mm
Recoiler motor: 90KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 100m/min, adjustable.

4.MA-(0.4～4)×1600mm Slitting Line, domestic
Material of coils: HRC, CRC, GI, PPGI, ST37, ST52.....
Strip thickness: (0.4-4) mm
Max. Strip width: 1600mm
Coil ID: ≥Φ508mm
Coil OD: Φ2000mm
Max. Coil weight: 30000Kgs
Slitter motor: 75KW DC motor
Slitter shaft: Ф220 x 1650mm
Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
Separating disc: ID85 x OD210mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
Recoiler block: Ф508 x 1700mm
Recoiler motor: 90KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 80m/min, adjustable.

Specification form of Metal Coil Slitter:

Model	Thickness	Width	Coil Weight	Finished slit width	Max Slitting speed
MA-1 x 600	0.2-1mm	100-600mm	Max 8T	Min. 20mm	50m/min
MA-2 x 1300	0.3-2mm	300-1300mm	Max 15T	Min. 25mm	80m/min
MA-3 x 1600	0.3-3mm	500-1600mm	Max 20T	Min 25mm	100m/min
MA-4 x 1600	0.4-4mm	500-1600mm	Max 30T	Min 30mm	80m/min
Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us.
