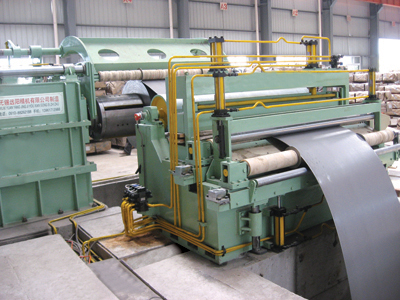

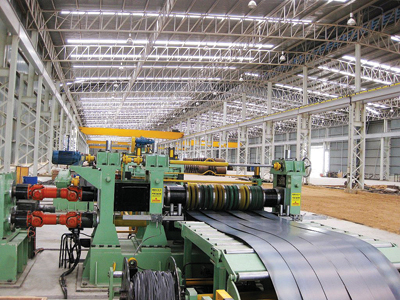

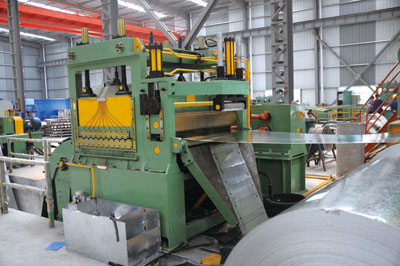

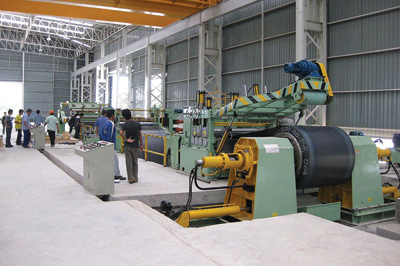

Introduction: This thick plate slitting line, also called metal coil slitter, is able to slit thick steel master coil into small baby coils. The thick coil slitting line is composed of: coil-loading car, double mandrel big-load uncoiler, portal style coil-head guide, press and shovel equipment, double roller pinching feeder, five-roller leveler, end-cutter, Roll table, Central aligner, Disc slitter, scrap winder, hole accumulator, pre-separator& tensioner, Portal style coils-separator and presser, recoiler, coil unloading car, hydraulic control, and electric control.
Capacity of different models of thick sheet slitting lines (metal coil slitter):
Strip thickness: (3~12) mm, (4-16)mm, (5~20) mm;
Strip width: 500-1800mm, 800~2000mm or 1000~2200mm.
Detail specification of Coil Slitting Machine:
1.MA-(3-12)×1800mm Sheet Slitting Line
Material of coils: HR/CR carbon steel, galvanized plate, colored steel plate etc.
Metal Coil Slitter Strip thickness: (3~12) mm
Coil Slitting Machine Strip width: 500~1800mm
Max.coil weight: 35000kgs
Diameter of leveling rollers & tensioning roller: Φ210
Metal Coil Slitter Diameter of slitter shaft: Φ300
Disc cutters: 6CrW2Si, HRC56°~58°, OD500mm x ID300mm x T25mm.
Diameter of recoiler block: Φ610mm
Separating discs: 65Mn, OD250 x ID95 x T10/20mm
Coil Slitting Machine DC motors for slitter and recoiler: 160KW, 200KW.
Metal Coil Slitter speed: (0~30) m/min, adjustable
2.MA-(4-16)×2200mm Sheet Slitting Line
Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Strip thickness: (4~16) mm
Metal Coil Slitter Strip width: 800~2200mm
Coil Slitting Machine Max.coil weight: 40000kgs
Diameter of leveling rollers & tensioning roller: Φ230
Diameter of slitter shaft: Φ360
Metal Coil Slitter Disc cutters: 6CrW2Si, HRC54°~56°, OD600mm x ID360mm x T50mm.
Diameter of recoiler block: Φ760mm
Coil Slitting Machine Separating discs: 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler: 200KW, 250KW.
Slitting speed: (0~30) m/min, adjustable
3.MA-(5-20)×2000mm Sheet Slitting Line
Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc
Metal Coil Slitter Strip thickness: (5~20) mm
Strip width: 800~2000mm
Max.coil weight: 40000kgs
Diameter of leveling rollers & tensioning roller: Φ260
Metal Coil Slitter Diameter of slitter shaft: Φ420
Coil Slitting Machine Disc cutters: 6CrW2Si, HRC54°~56°, OD650mm x ID420mm x T50mm.
Diameter of recoiler block: Φ800mm
Separating discs: 65Mn, OD250 x ID110 x T10/20mm
DC motors for slitter and recoiler: 280KW, 315KW.
Coil Slitting Machine Slitting speed: (0~20) m/min, adjustable
Specifications of Metal Coil Slitter:
|
Model |
Thickness |
Width |
Coil Weight |
Finished slit width |
Max Slitting speed |
|
MA-12 x 1800 |
3-12mm |
600-1800mm |
Max 35T |
Min. 60mm |
30m/min |
|
MA-16 x 2200 |
4-16mm |
800-2200mm |
Max 40T |
Min. 100mm |
30m/min |
|
MA-20x 2000 |
5-20mm |
800-2000mm |
Max 40T |
Min 100mm |
20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer’s specific requirements, so each customer can buy his own well-content coil slitting machine from us. |
