Introduction:
Middle thick plate cut-to-length line can meet customer’s request of max line speed 40m/min by uncoiling & leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.
This coil CTL line is especially suitable for CR, HR carbon steel coils, GI, PPGI steel plates.

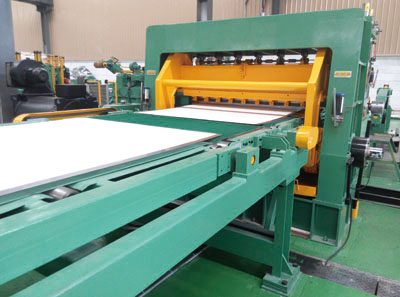

The plate cut-to-length line (coil CTL line) has one leveling machine driven by DC or AC motor, and the length-fixing is by encoder, shearing style is stop-shear.
The middle thick plate cut-to-length line fit steel coils with thickness: (1~6mm, 2~8mm, 3-10mm) and changeable width, and length of finished sheets depend on customer’s practical need.

Advantages & Characteristics for this coil CTL line:
1. High precision
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in average.
Leveling precision: ±1mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±0.5mm/m

Solutions:
Input material: CR, HR carbon steel coils, GI, PPGI steel plates.
1. MA-(1~6)×1600mm/2000mm/2500mm plate Cut to Length Line
Strip thickness: 1~6mm
Strip width of coil CTL line: 600~1600mm, 800-2000mm, 1100-2500mm
Leveling roller: Φ140
Material of leveling roller: 40Cr, HRC56-58
Power for leveling: 75KW/90KW DC motor + Eurothem 590 DC speed control
Cutting speed: (0~40) m/min, adjustable

2MA- (2-8)×1250mm/ 1500mm/2000mm Cut to Length Line
Strip thickness: 2~8mm
Strip width of coil CTL line: 300~1250mm/1500mm/2000mm
Leveling roller: Φ180mm
Material of leveling roller: 40Cr, HRC56-58
Power for leveling: 90KW/110KW DC motor + Eurotherm 590 DC speed control.
Cutting speed: (0~30) m/min, adjustable

3MA-(3-10)×1800mm/2000mm Cut to Length Line
Strip thickness of coil CTL line: 3~10mm
Strip width: 800~1800mm, 1000-2000mm
Leveling roller: Φ200
Material of leveling roller: 40Cr, HRC55-58
Power for leveling: 110KW/132KW DC motor + Eurothem 590 DC speed control.
Cutting speed: (0~30) m/min, adjustable
Detail specification of coil CTL line:
