Description:

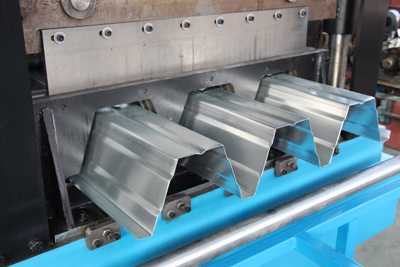

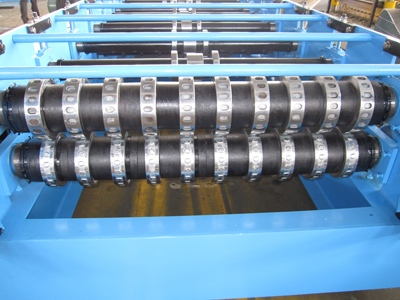

The metal deck roll forming machine uses new station to increase the strength of the machine. It commonly applies to be used in floor flat. The friction between the steel and concrete can be increased after making dots of the sheet, so that the floor of the fastness is also increased.

Main Technical Specification:
Material width: 1250 mm
Material thickness: 0.8-1.5mm
Work speed: 12-15m/min

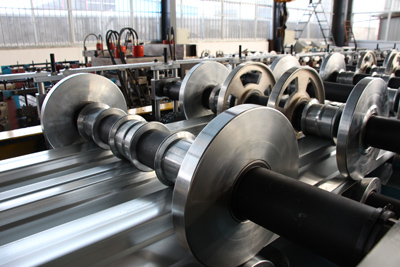

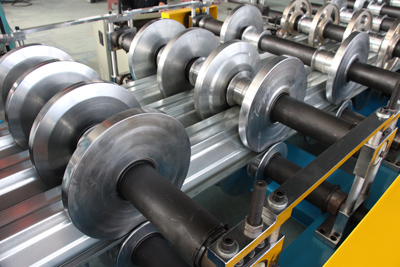

Roll station: 32 stations
Main power: 22KW (two 11KW)
Hydraulic station power: 5.5KW
Control system: Panasonic brand PLC
Drive: by chain
