Introduction:

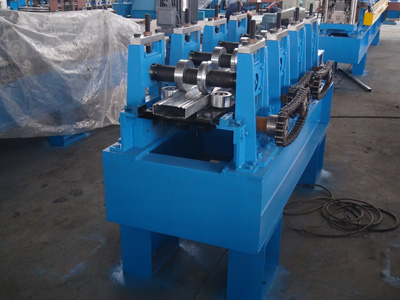

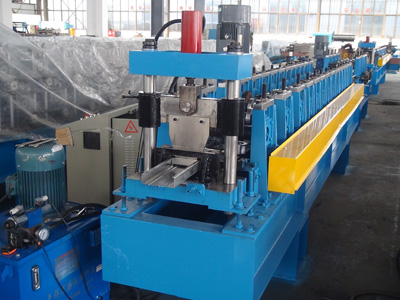

The rack shelf forming machine, also called rack roll forming machine, is used as racks and shelves for supporting the daily commodities in supermarkets and shops. It is comprised of a passive of hydraulic uncoiler, flying tracking cutting, servo motor, roll forming unit, PLC automatic control cabinet and product run out table.
The normal thickness of the rack roll is 1.8—4mm and the producing speed is 12m—15m/min (exclude shearing). Other specification can be customized according to the clients’ requirements.
If without such confirmed agreement, please comply with China Construction roll formed plate standard: GB/6723-86.

The detail specification as follows:
Size of grain barn plate: 1250mm
Producing speed: 12m—15m/min (exclude shearing)
Number of stations: 18
Material of Rollers: GCR15 steel, fine maching, HRC55-60, with hard chrome treatment
Material of main shaft: good quality 45# steel, fine maching, quenching and tempering
Diameter of the shaft: Ф155mm
Main motor power: 55KW
Motor for hydraulic station: 11Kw
Pressure of hydraulic station: 25Mpa
Electric control system: computer PLC frequency conversion control
Panasonic PLC made in Japan
Panasonic frequency converter
Omron encoder
Dimensions of the machine: 10500×2100×1400mm
Material of shearing cutter: Cr12Mov
Roll forming thickness: 1.8—4mm
Cutting precision of length: 3m+-1.5mm
Drive style: gearboxes and universal joints
Technical design takes 3mm as standard thickness
Material of grain silo plates: Q195, Q235
