Description:

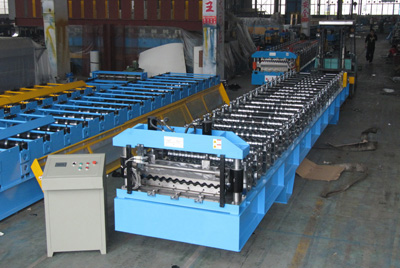

1. The roof panel roll forming machine has the speed of 30 m / min, greatly improving the production efficiency.
2. This equipment is suitable for simple house, steel plants and other wall board production.
3. It has the competence in material handling system (outbound and inbound logistics); at the same time, the storage system know-how ensures production processes.

Main Technical Specification:
(1)Material thickness: 0.3-0.8mm
Working speed: 12-15m/min
Roll station: 18 stations (depend on the profile)
Main power: 5.5KW
Hydraulic power: 3KW
Control system: PLC Panasonic
Drive: by chain
(2)Material thickness: 0.3-0.8mm
Working speed: 25-30m/min
Roll station: 18 stations (depend on the profile)
Main power: 7.5KW
Hydraulic power: 3KW
Control system: PLC Panasonic
Drive: by chain
