Introduction:

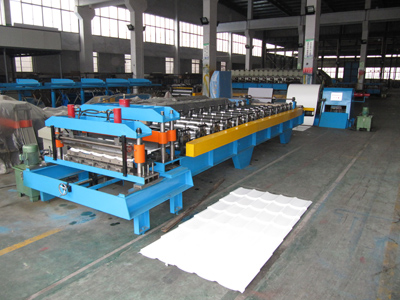

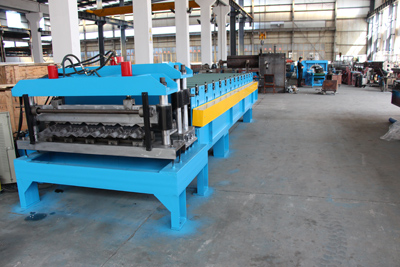

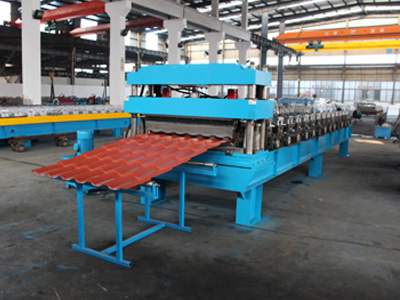

The steel tile roll forming machine uses new station to increase the solidity of the machine. We are committed to design the products which can increase the housing aesthetics. This equipment is suitable for modern architecture roofing.

Main Technical Specification:
(1) Thickness: 0.3-0.8mm
Speed: 5-6m/min
Roll station: 16 stations(depend on the profile)
Main power: 4.4KW Servo motor
Hydraulic power: 4KW
Control system: PLC Panasonic

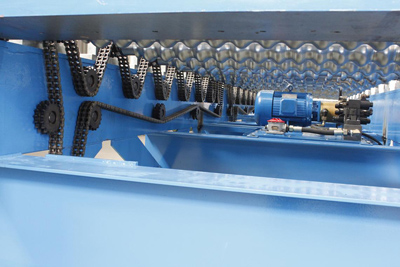

Drive: by chain
(2) Thickness: 0.3-0.8mm
Speed: 2-4m/min
Roll station: 16 stations(depend on the profile)
Main power: 5.5KW
Hydraulic power: 4KW
Control system: PLC Panasonic
Drive: by chain.
