Specification:
Material to be processed: carbon steel, cold rolled, hot rolled pre-slit strip coils.
Steel Grade: 0.2% carbon
Type of Products: Round Tubes, Square tubes, Rectangular tubes as well as Hollow Sections
Round Tube Outside Diameter: 15-63mm
Square tubes: Min 10 x10 Max 50 x 50 mm
Rectangular tubes: Min 10 x 15 Max 40x 60 mm
Tube Thickness: Min 0.5 Max 3.25 mm
Forming Line Speed: Max 100 m/min (Square and Rectangular tubes are produced at lower speeds which depend on side to wall thickness ratio)
Tube Cut Length: Min 4 Max 12 meter
Length Accuracy: ± 3mm
Main Drive Motor: DC 55kW×2
Line Composition:
Double Mandrel Uncoiler
Shear and TIG Welder
Horizontal Strip Accumulator / Cage Accumulator

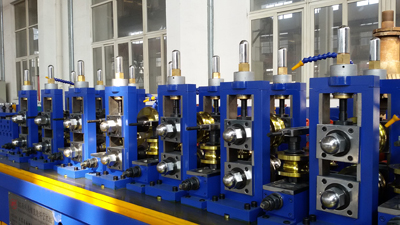

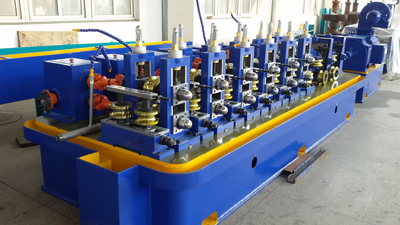

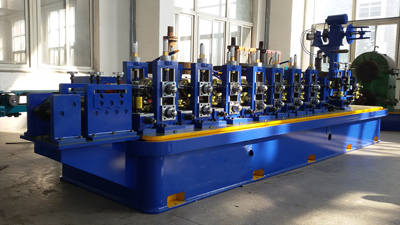

Forming, Welding, Cooling and Sizing Section.
Computer Flying Saw Cut-Off.
Run-Out Roll Table, Inspection table Collectors.
Solid State H.F. Induction Welder: 150 KW, Solid State (or 200KW,Vaccum Tube Type).

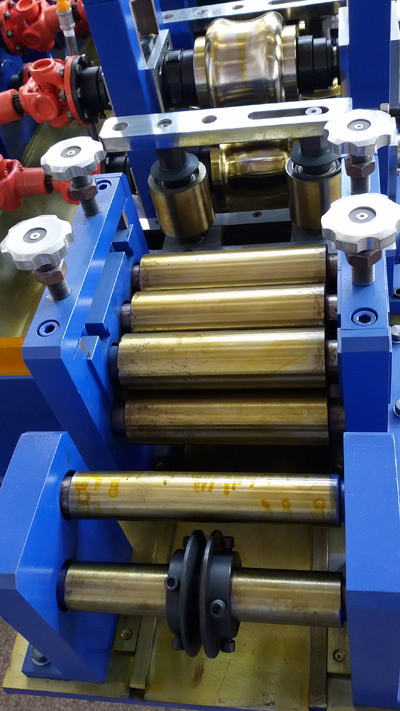

Rolls: Rolls are manufactured in accordance with AISI D3 D2 or E52100
Electrical control cabinets
